The Coating Ceramic Anilox Roller is a high-precision metering roller that combines the strength of stainless steel with the wear resistance of ceramics. It is widely used in flexographic printing, coating, and glazing processes.
Main Features
* Anti-fraying, Anti-corrosive, Thermo stability, Long-life service and cost-sacking.
* The cell engraved by ALE fiber laser engraving machine, has a large quantity of ink-containing.
And the cell has a regular shape and a smooth cell-wall and cell-bottom. Thus , not only can the ink in the cell release quickly , but also it can easily to clean .
* Taking strict process of plasma-sprayed ceramic layer, guarantees the porosity , the thickness and the uniformity of the layer .
* Combined with the super-alloy stainless steel layer to ensure the solid combination of the ceramic layer and the roller base. So , it can present the corrosive substance of the printing ink to plug into the roller base effectively .
* Providing all the products the cell-volume detecting report to ensure the accuracy of the cell's ink-containing.
Ceramic Anilox Roller's Parameter
|
Diameter |
50 - 800mm |
|
Length |
100 - 6000mm |
|
Line Count |
60 ~1400LPI |
|
Coating Performance |
Hardness HV1300, Porosity 1-2% |
|
Circular runout |
≤0.01mm |
|
LPI |
Measures the number of cells per linear inch on the anilox roll's surface. |
|
Cell Volume |
The volume of the cells, measured in BCM (Billionths of a Cubic Meter), dictates the total amount of ink or liquid the roll can hold |
|

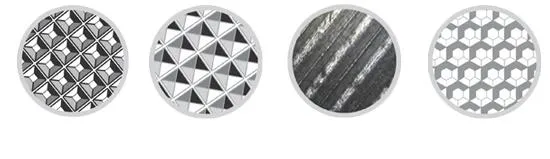

Engraving Geometry |
Cells can be various shapes, such as hexagonal, quadrangular, or tri-helical, or open-channel designs, which affect ink transfer. |
Product Superiority
*The mesh is conducive to the transfer of ink;
*The flat net wall facilitates the cleaning of the net pockets;
*The ceramic coating with low porosity enhances the integrity of the high-wire-count mesh pores;
*It possesses wear resistance and corrosion resistance;
*With a long service life, it helps reduce costs.
*Provide a factory inspection report on the mesh volume to ensure the accuracy of the ink capacity.
Application Scenarios
Packaging and label printing (core application)
*Corrugated cardboard box: used for printing text, color blocks, and patterns on outer packaging.
*Flexible packaging: such as food packaging bags, composite films, etc.
*Label: including adhesive labels, beer labels, daily chemical product labels, etc
*Coating industry: used for producing various functional films, such as:
*Optical film and protective film: Precisely control the coating amount to ensure optical performance and bonding effect.
*Lithium battery separator: Ensuring uniformity of the coating directly affects battery performance and safety.
*Glazing and Laminating: In the post-printing processes of packaging, it is used for water-based or UV glazing, laminating, etc., to enhance the appearance and durability of the product.
*In the non-printing field of special material processing, ceramic anilox rollers also play an important role.

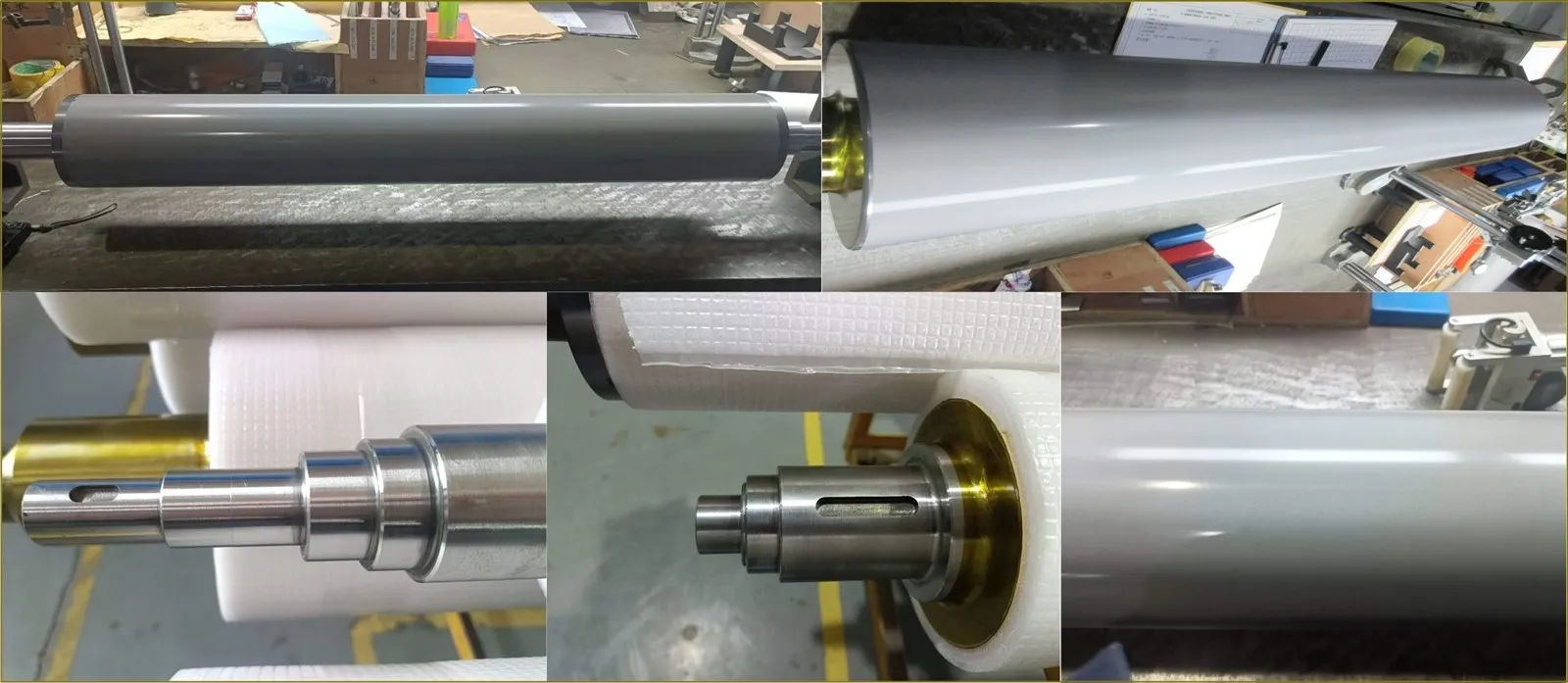

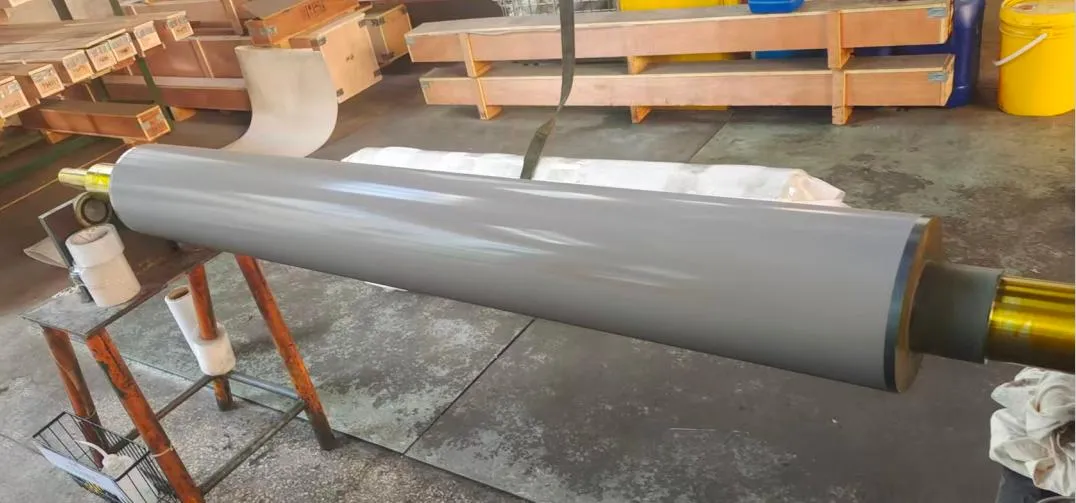

Product Detail Drawing
After Sales Service
Standard Warranty
12 months
Global Support
24/7 technical assistance and spare parts supply.
Training
On-site or remote operation/maintenance training.
