The Seamless Steel Pipe Ceramic Anilox Roller is a high-precision metering roller that combines the strength of stainless steel with the wear resistance of ceramics. It is primarily used in flexographic printing, coating, and glazing processes.
a) Advanced Finishing & Tech
b) Post-Engraving Polish (CPT): A thermal finishing step that smooths cell walls to improve ink release, enhance cleaning, and extend roller life -1.
c) Twin-Track Engraving: A newer technique that sculpts the cell shape and power to achieve a "flat bottom," which improves ink transfer over traditional cone-shaped cells -9.
d) Specialty Engravings: Includes options to prevent moire patterns (61° angle) or specialized cells for opaque whites
|
|
||||
|
Raw Material |
Roller Diameter |
Max Length |
TIR |
Screen |
|
Seamless Steel Pipe |
40~600mm |
5500mm |
0.01 |
60~1600LPI |
|

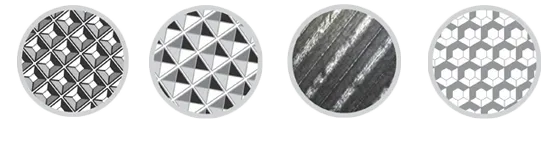

Cell shape |
||||
|
Hexagonal, Quad, Trihelical, Wave, Art type etc |
||||
|
|
||||
Ceramic Anilox Roller's Parameter
product superiority
High Efficiency, Energy Saving and Long Service Life
Ultra-high hardness and longevity
The hardness of the ceramic layer reaches HV1200-1350, with a wear resistance typically exceeding 3 million meters, and high-quality products can achieve over 10 million meters.
High-precision ink delivery
Utilizing fiber laser engraving imported from ALE in the UK or Germany, the entire plate exhibits minimal differences in dot size, with an ink quantity error of less than 3%, ensuring color consistency.
Chemical resistance
Spraying a super-strong nickel-chromium alloy base layer and performing nanoscale sealing, the corrosion resistance is improved by more than 300% compared to ordinary chrome-plated rollers.
Application Scenarios
In offset printing
The ceramic aniloxes of the varnishing units allow a more consistent and homogeneous protection with both acrylic and UV-curing varnishes.
For the application of gloss, matt and other effects varnishes, we have various special engravings to embellish packaging, catalogues or any other product printed with greasy or UV inks. ibeslab VARN laser engravings offer precise dosing with optimum levelling and easy cleaning of the cells.
In printing on corrugated board
Anilox rollers are used to transfer the water-based inks, mostly used in the printing of packaging and protective boxes, efficiently and uniformly to the sides of the corrugated board, ensuring a high quality appearance and colour intensity, neutralising the absorption of the substrate.
The wear resistance of the ceramic and the easy cleaning of the cavities are one of the most valued elements in this type of engraving.
On special coating or finishing machines
Anilox rollers allow the application of high volumes of various fluids. Spectacular results can be obtained with high layers of waxes, adhesives or varnishes.
These coatings are obtained uniformly on different materials, thanks to the special design of the cells or the surface of the anilox cylinder. Improving the aesthetic and functional properties where other printing or dosing systems have limitations.

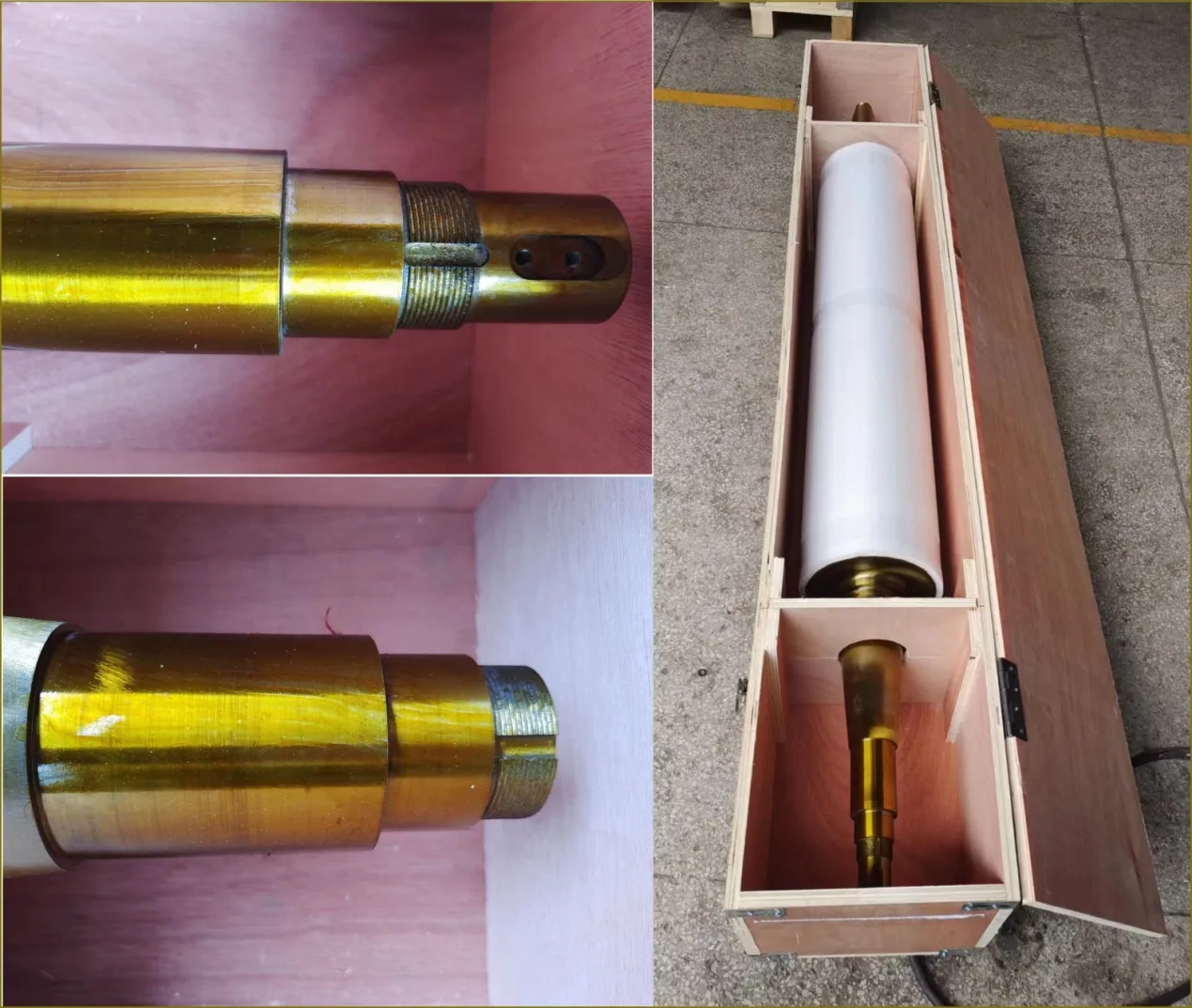

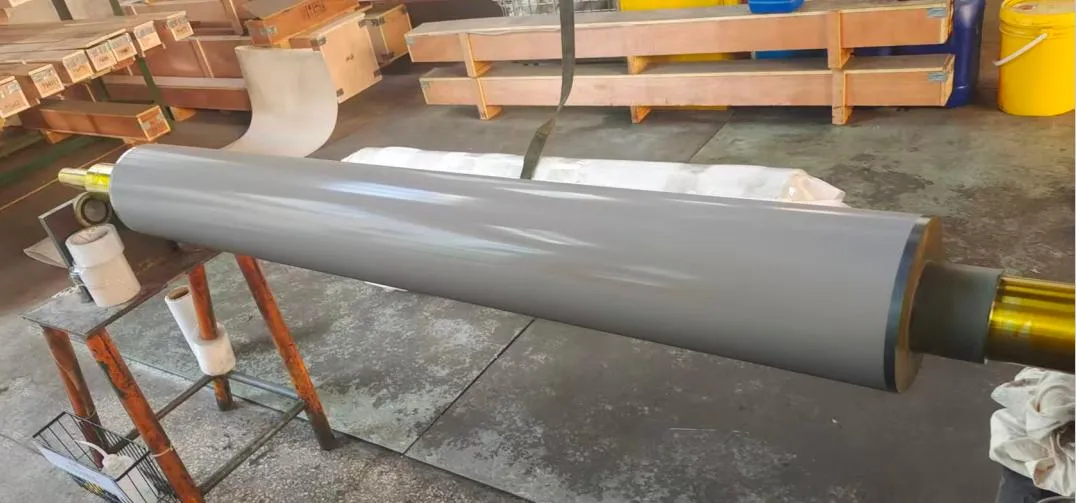

Product Detail Drawing
Maintenance of anilox roller
*The first is to protect it from knocks and falls during use. Especially when assembling and disassembling the flexo printer. The ceramic area is delicate and rubbing against tools or parts of the machine could cause damage to the cells that is not feasible to repair. It is advisable to store them well, in a safe place, away from accidental knocks and contaminants.
*Adequate and regular cleaning is the other important step in the good care of anilox cylinders, using suitable chemical products in the process, observing the manufacturer's recommendations for use.
