"Ceramic anilox roller sleeve" is an abbreviation for the sleeve-type ceramic anilox roller, which is a core technology in flexographic printing. Simply put, it replaces the traditional "solid steel roller" with a set of "hollow sleeves", achieving "downsizing" and "quick change" of the printing roller.
Modern printing pursues "more, faster, better, and more economical" goals. Traditional rollers are heavy and difficult to replace, no longer suitable for small-batch and fast-paced production.
Structure and Process
Sleeve body: from the inside out, it consists of a composite material layer, a metal transition layer, and a ceramic working layer
*Inner layer: It utilizes a special compressible fiber composite material to ensure a tight fit with the inflatable shaft.

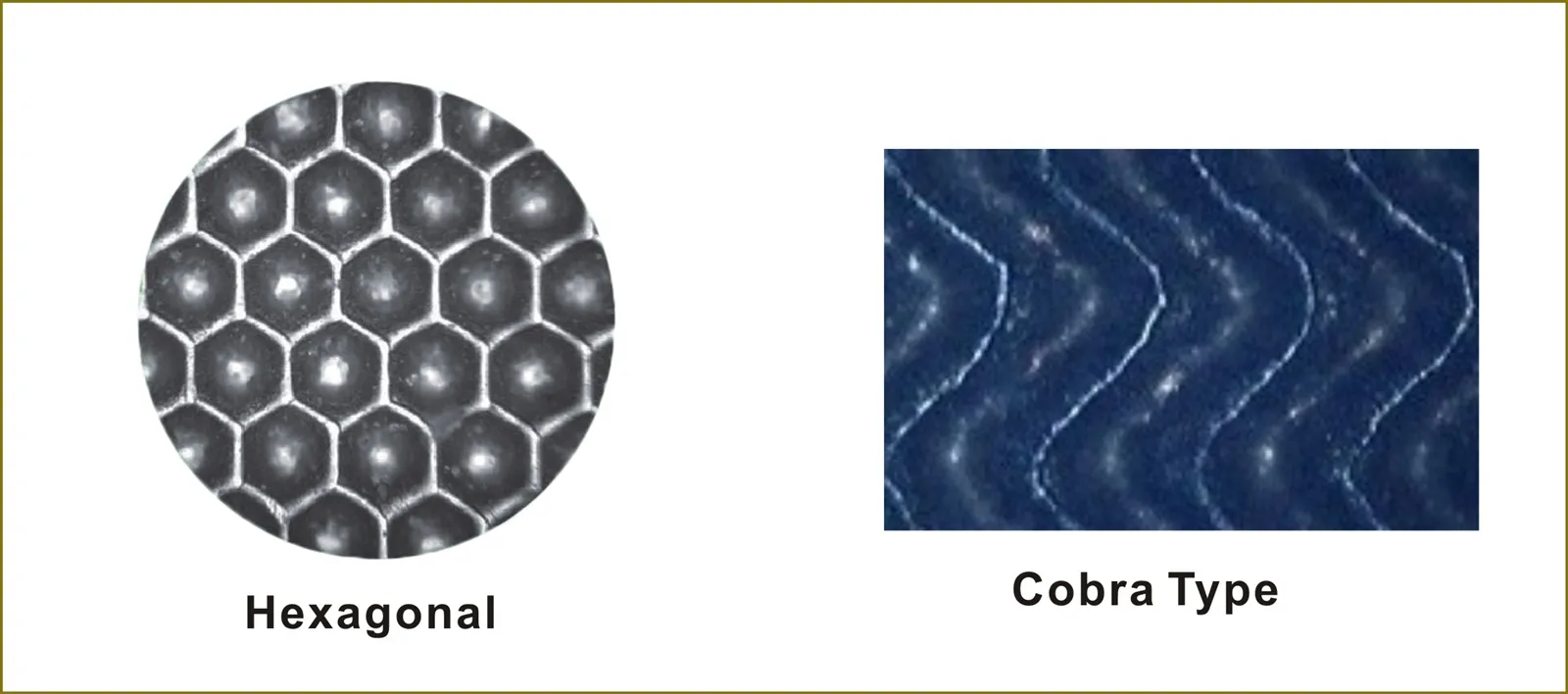

*Outer layer: A precise layer of chromium oxide ceramic, with millions of tiny "grid holes" laser-engraved on the surface, responsible for the quantitative transmission of ink.
Cooperation principle: During installation, air is supplied to the inflatable shaft, causing the shaft to slightly "expand" and lift the inner wall of the sleeve. This allows operators to easily push it to the designated position. When the air source is turned off, the shaft "contracts", and the sleeve is firmly locked in place
Main Advantages
Compared to traditional monolithic metal anilox rollers, ceramic anilox sleeves offer significant advantages:
*Quick changeover and high efficiency
The lightweight sleeve design, coupled with pneumatic technology, enables rapid replacement on the printing press, making it particularly suitable for short-run jobs and frequent changeover production needs, significantly reducing downtime.
*Superior hardness and wear resistance, long lifespan
Ceramic coatings boast an extremely high hardness, typically exceeding HV 1200 (with some high-end products reaching HV 1500). This level of hardness endows the sleeves with exceptional wear resistance and scratch resistance, enabling them to withstand prolonged high-speed printing.
*Cost reduction
Inventory cost: It is only necessary to purchase "sleeves" of different specifications for storage, without the need to stockpile heavy, whole steel rolls.
*Transportation cost
The lightweight of the sleeve reduces transportation expenses accordingly

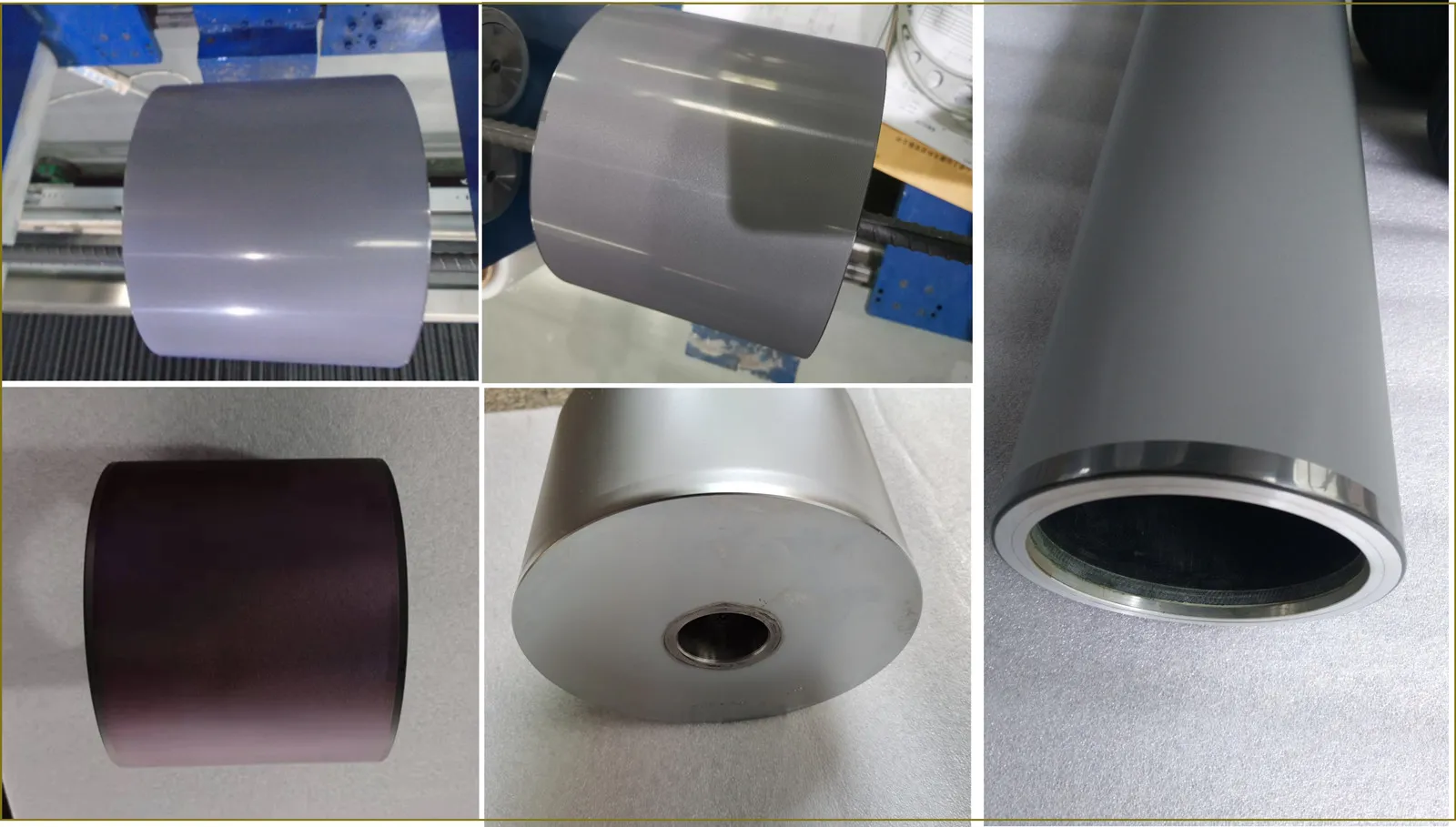

Product Detail Drawing
Maintenance and Precautions
Although the inner wall of the sleeve is sturdy, it is highly susceptible to the entry of hard debris such as gravel and paper scraps. Once foreign objects become lodged between the sleeve and the inflatable shaft, even with ventilation, it will be impossible to install or disassemble it properly. Therefore, it is necessary to keep the inner wall and shaft clean during operation.
