Male and female embossing rollers are a matched pair of cylinders used to create raised or sunken patterns on materials like paper, foil, and packaging films.

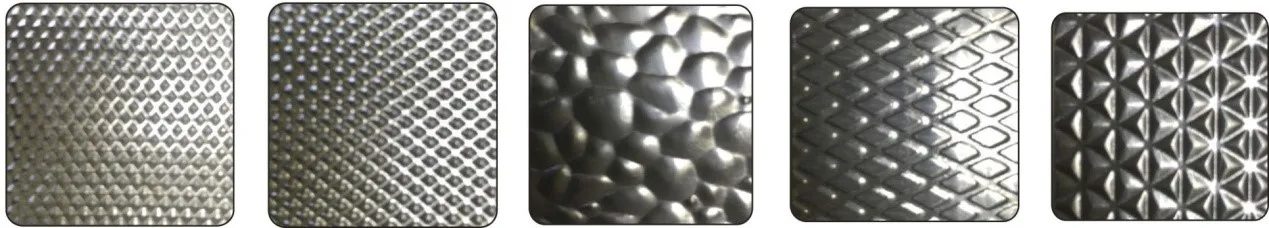

Some kinds of Patterns:
This system uses two rollers that work together:
Male Roller: The surface has raised "teeth" or protrusions.
Female Roller: The surface has cavities or depressions that the male roller fits into.
As the material passes between these rollers under pressure, it is forced into the shape of the cavities, creating the embossed design
Key Design & Manufacturing Considerations
Matched vs. Unmatched
Traditional matched systems aim for perfect symmetry, where the male and female shapes are exact opposites. However, newer approaches use "unmatched" designs where the female cavity is slightly larger or shaped differently. This creates specific "pinch points" that can yield sharper embossing, increase the material's bulk, and reduce tearin
Independent Manufacturing
Modern techniques can manufacture the male and female rollers independently (e.g., using precise laser systems), rather than physically casting one from the other. This significantly reduces production time and cost while allowing for more complex designs
Material Pairing

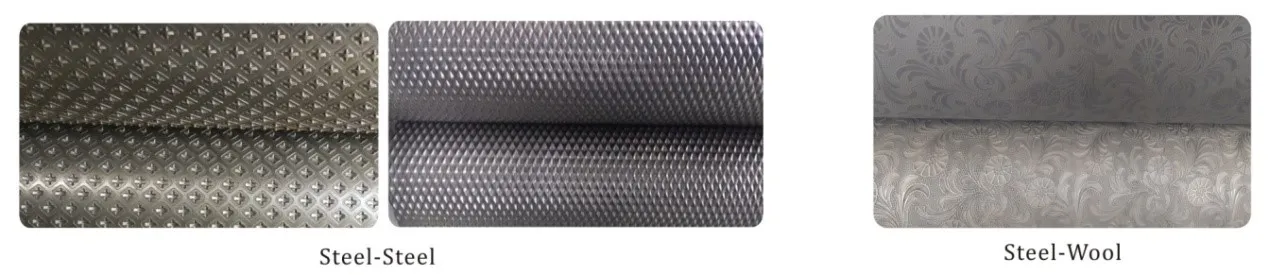

The pair is not necessarily made of the same material. While both can be hard steel, it's also common to use a hard steel male roller with a female roller made from a resilient material like rubber or plastic
Application Areas and Advantages
The male&female embossing can achieve a high-precision effect that far exceeds ordinary embossing
*Extremely high manufacturing precision: The male and female rollers must be engraved synchronously to ensure that the protrusions and indentations of the pattern perfectly match. This highly difficult craftsmanship is the foundation for ensuring clear patterns and preventing deviation
*Strong "head-on" pressure: Unlike embossing with a combination of soft and hard elements, steel male and female rollers can withstand tremendous linear pressure. The intense pressure causes the material to deform thoroughly, thus creating a distinct, tactile 3D effect, rather than just a flat texture.

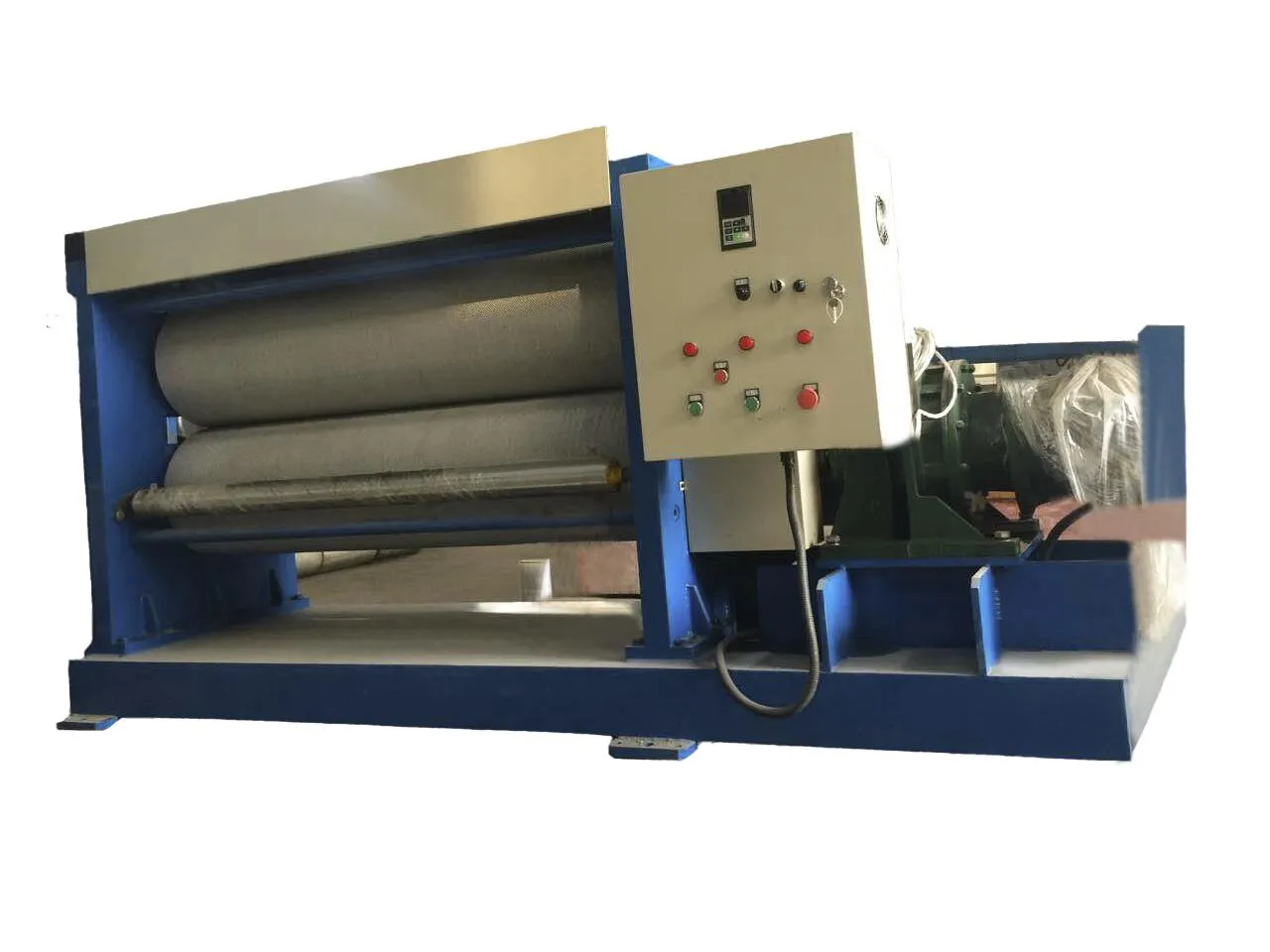

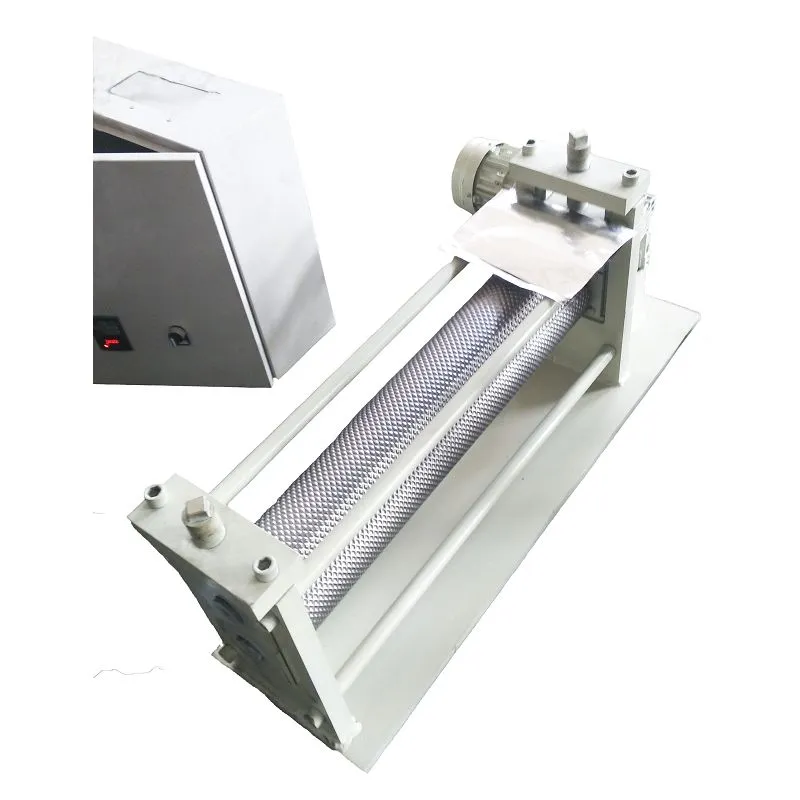

Product Detail Drawing
FAQ
|
Delivery time |
20~30 days. |
|
Payment terms |
TT 30% advance,70% before shippment |
|
Warranty time |
1 year after sales service |
|
Trade Terms |
EXW,FOB, CIF, etc |
|
MOQ(Minimum Order Quantity) |
1PC |
|
Package |
Wooden Case |
|
Country of Origin |
China |
Hot Tags: male&female embossing roller, China male&female embossing roller manufacturers, suppliers, factory
