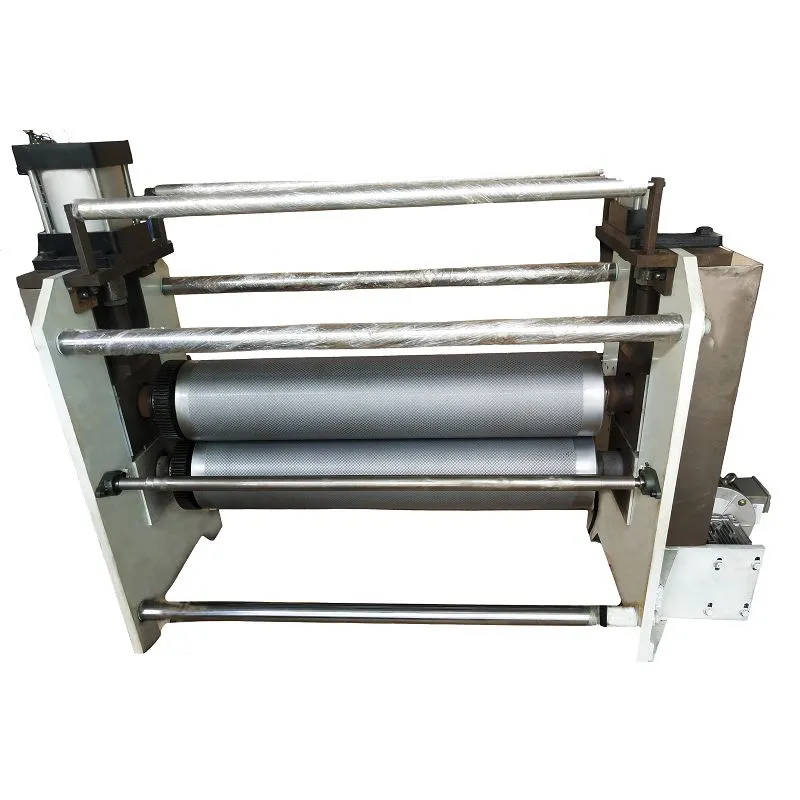

It is a technology where both the upper and lower rollers are made of steel, and through the precise engagement of their surface concave-convex patterns, the material is subjected to compression molding:

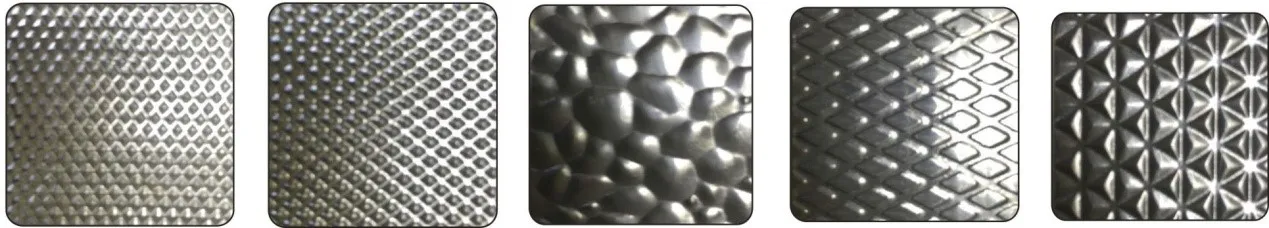

Some Kinds of the patterns:

product-1269-228

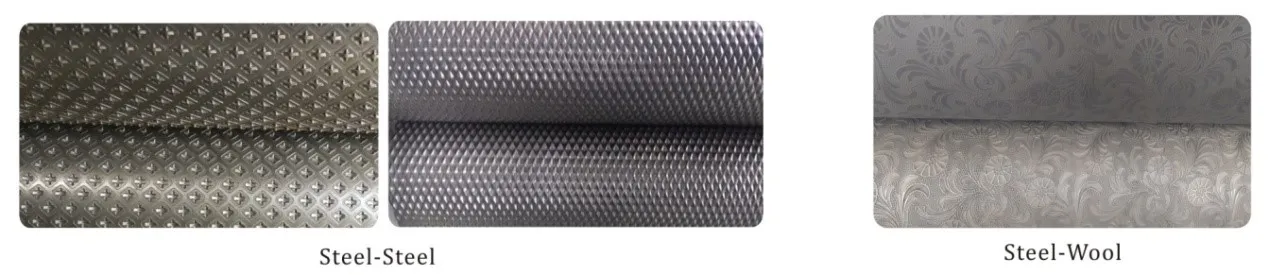

This system uses two rollers that work together:

product-1269-275

Working Principle and Core Advantages

Both rollers are made of hard steel, rather than soft materials such as rubber or wool. During operation, the upper roller with convex patterns precisely presses against the lower roller with concave patterns, causing the material to undergo plastic deformation as it passes through, thus forming the pattern

Compared to other embossing methods, its advantages are particularly prominent:

*The pattern is clear and has a strong three-dimensional effect: the "hard-on-hard" contact between the two steel rollers can generate a significant linear pressure, which can reach up to hundreds of kilograms per square centimeter, forcing the material to fully conform to the mold. Therefore, it can imprint a 3D pattern with sharp lines, rich layers, and distinct tactile feel.

*Steel rollers exhibit excellent wear resistance, maintaining consistent embossing effects even under high linear speeds (up to 800 meters per minute) and prolonged continuous production. Under normal use, it is common for them to maintain embossing performance for over 5 years.

*Equipped with anti-counterfeiting function: Due to the difficulty in imitating high-precision engraving techniques, steel-on-steel embossing is often used to create anti-counterfeiting marks or brand-specific textures for packaging

Technical Parameter

To ensure its excellent performance, steel-on-steel embossing rollers are subject to strict standards in material selection and manufacturing:

Prameter dimension	Tchnical characteristics	Main functions
Material and Hardness	The substrate is commonly made of 45# steel or alloy tool steel, and its surface undergoes hard chromium plating treatment	Ensure extremely high wear resistance, compressive strength, and corrosion resistance
Pocessing accuracy	Using processes such as CNC engraving and precision grinding, the radial runout tolerance can be controlled to be ≤0.025mm	The minimal runout error and smooth surface are crucial for ensuring precise engagement between the two rollers without any gap, preventing material damage

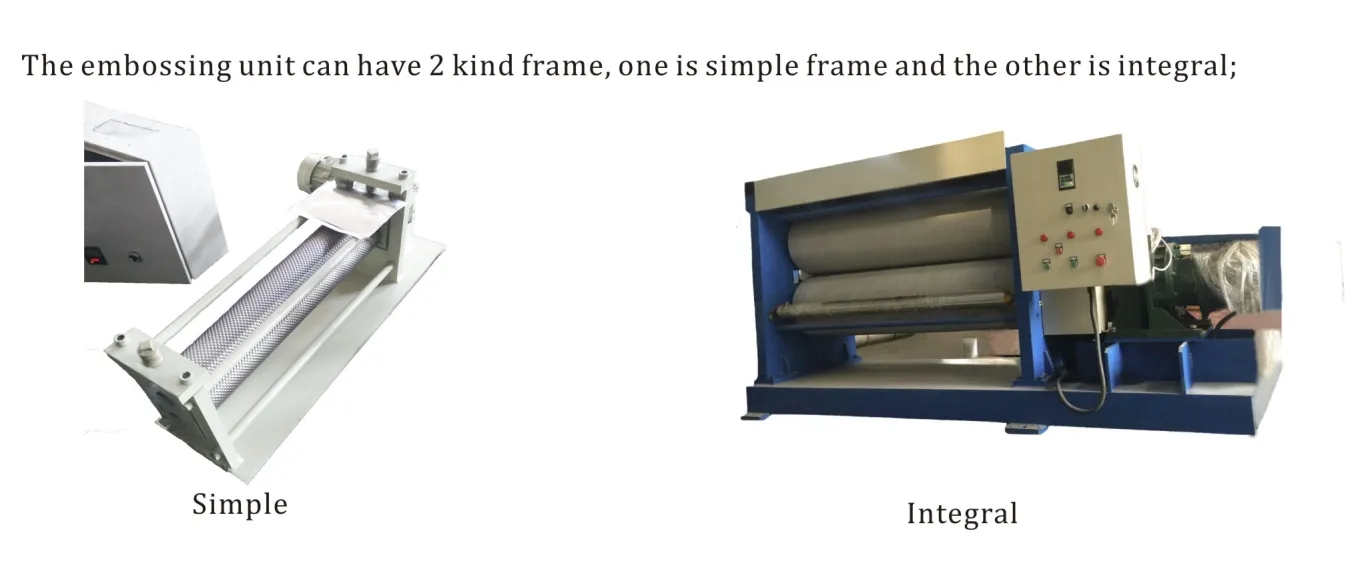

Sructure	The roller body is made of seamless steel tube, and through precise synchronous gear transmission, it ensures that the upper and lower rollers rotate in complete synchronization	Precise synchronization and spacing adjustment serve as mechanical safeguards to prevent misalignment of embossing patterns or the occurrence of "roller biting" accidents

Main Application Area

High-end packaging

Such as aluminum foil and cardboard used in cigarette packs, wine boxes, and cosmetics boxes, which present a rich texture and three-dimensional logos

Household paper

Produce high-end facial tissue and napkins by bonding multiple layers of paper at embossed points, which not only increases thickness and softness but also allows for the printing of exquisite patterns.

Special materials

Surface texture treatment of automotive interior parts, high-end decorative boards, artificial leather, etc
